Sensible Plate Heat Exchanger

Short Description:

Model: HBS-ZF250/250~ HBS-ZF1600/1600
Introduction: Made by flat aluminum foils of 0.12mm thickness;
Two air streams flow crossly;
Suitable for room ventilation system and industrial ventilation system;
Heat recovery efficiency up to 70%.
Certification:  2 (1) 2 (2) 2 (3)


  • :
  • Product Detail

    Product Tags

    in Features

    • Sensible heat recovery
    • Total separation of fresh air & exhaust air streams
    • Heat recovery efficiency up to 80%
    • 2-side press shaping
    • Double folded edge
    • Completely joint sealing.
    • Resistance of pressure difference up to 2500Pa
    • Under pressure of 700Pa, air leakage less than 0.6%

    Material type

    B series (standard type)

    Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 100℃, it is suitable for most of the occasion.

    F series ( Anti-corrosion type)

    Heat exchanger is made of pure aluminum foils cover by special anti-corrosion material, with galvanized end cover and aluminium alloy wrap angle., it is suitable for the corrosive gas occasion.

    G series (high temperature type)

    Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200℃, it is suitable for special high temperature occasion.

    Aluminum foils thickness range from 0.12 to 0.18mm because of the different specification heat exchanger.

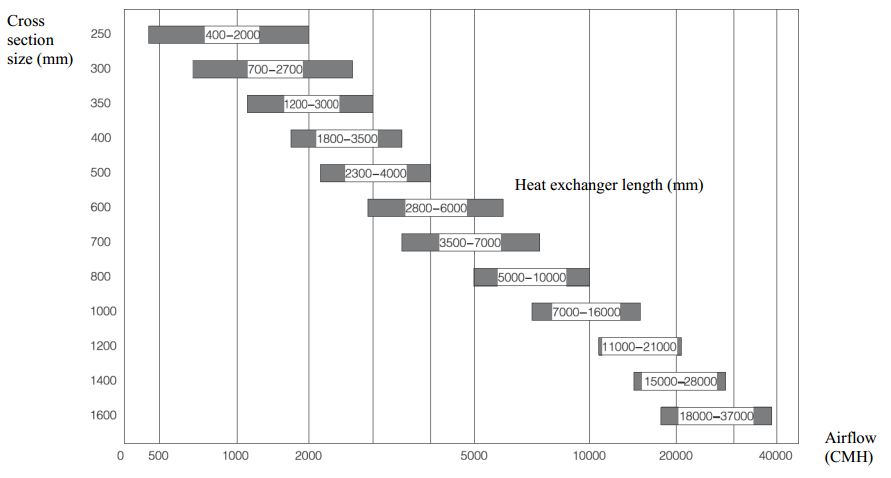

    Heat exchanger size and air volume

    1

    Remarks:① Length is customized, but should be within the specified range.

    ② Size C is for reference, size can be slightly increased according to

    heat exchanger length.

    1

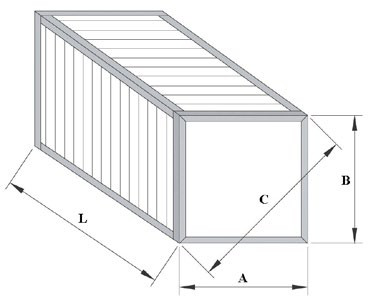

     Specifications

    Model A (mm) B (mm) C (mm) Length per piece (L) Optional spacing (mm) Remarks
    HBS-ZF250/250 250 250 356 <=400 4.0



    One module

    HBS-ZF300/300 300 300 427 <=400 4.0
    HBS-ZF300/300 300 300 427 <=500 5.0
    HBS-ZF350/350 350 350 498 <=400 4.0
    HBS-ZF350/350 350 350 498 <=500 5.0
    HBS-ZF350/350 350 350 498 <=550 6.0
    HBS-ZF400/400 400 400 568 <=400 4.0
    HBS-ZF400/400 400 400 568 <=500 5.0
    HBS-ZF400/400 400 400 568 <=550 6.0
    HBS-ZF500/500 500 500 710 <=550 6.0, 8.0, 10.0
    HBS-ZF600/600 600 600 851 <=550 6.0, 8.0, 10.0
    HBS-ZF700/700 700 700 993 <=550 8.0, 10.0
    HBS-ZF800/800 800 800 1134 <=550 8.0, 10.0
    HBS-ZF1000/1000 1000 1000 1417 <=500 6.0, 8.0, 10.0   Four modules combined
    HBS-ZF1200/1200 1200 1200 1702 <=500 6.0, 8.0, 10.0
    HBS-ZF1400/1400 1400 1400 1985 <=500 8.0, 10.0
    HBS-ZF1600/1600 1600 1600 2265 <=500 8.0, 10.0
