Compact HRV High Efficiency Top Port Vertical Heat Recovery Ventilator

Short Description:

  • Top Ported, compact design
  • Control included with 4-mode operation
  • Top air outlets/outlets
  • EPP inner structure
  • Counterflow heat exchanger
  • Heat recovery efficiency up to 95%
  • EC fan
  • Bypass function
  • Machine body control + remote control
  • Left or right type optional for installation


Product Detail

Tags

Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This comfort fresh air heat recovery ventilator offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It’s the perfect addition to your modestly-sized home.

FEATURES•High-efficiency heat recovery up to 95%.•EC constant airflow fans with low energy consumption, 4 speeds.

•The highest efficiency under all conditions due to Constant Flow Control.

•Supply air purification with primary filter (G4) and medium filter (F7) optional.

•Standard 100% bypass.

•Eco-design A or A+ label.

•Enthalpy exchanger available for a better balanced indoor humidity during winter season.

•The lowest operating noise is 31dB(A).

•Two types of installation to suitable room.

•Smart phone control Android / IOS.



compact heat recovery ventilator (11)

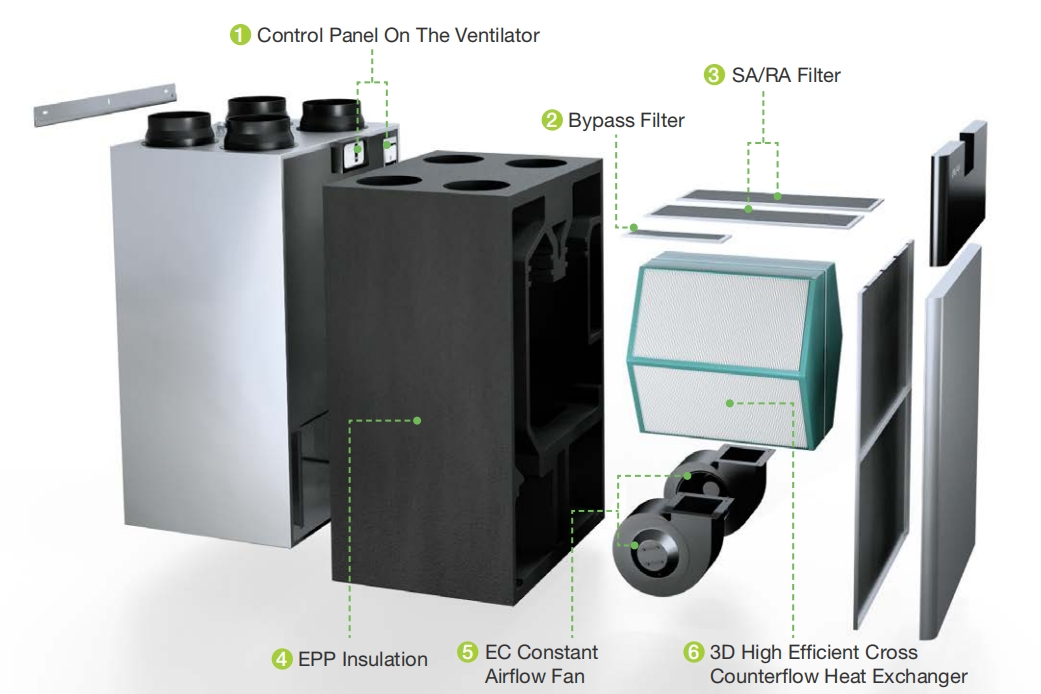

Structure of Top Ports Vertical Compact Heat Recovery Ventilator

Design

Heat exchanger for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (12)compact heat recovery ventilator (14) compact heat recovery ventilator (13)

Motor for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (6)

Controllers for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (3) compact heat recovery ventilator (4)
Control Functions

Installation for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (5) compact heat recovery ventilator (1)

Certificates for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (9)

Maintenance Tips for Top Port Vertical Heat Recovery Ventilator

compact heat recovery ventilator (7) compact heat recovery ventilator (8)

Product Specifications for Top Port Vertical Heat Recovery Ventilator

MODEL No. CFA 250T CFA 350T CFA 500T
Voltage [ V ] / Frequency [ Hz ] 230V/50Hz
Airflow [ m³/h ] 250 350 500
External Static Pressure [ Pa ] 130 150 160
Temperature Efficiency at Rated Airflow [ % ] 85 85 85
Max Temperature Efficiency [ % ] 95 95 95
Rated Power [ W ] 170 320 480
Noise [ dB(A) ] 35 37 39
Energy Efficiency Class A A A
Weight [ kg ] 40 40 50


Product Size for Top Port Vertical Heat Recovery Ventilator

dimension
