ERV Intelligent Controllers

Short Description:

 Intelligent controllers for heat energy recovery ventilators.


Product Detail

Tags

Latest update for Holtop intelligent controllers: WIFI connection function.

 wifi app App is available to iOS and Android phones with the following functions:1. Monitoring indoor air quality
Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living.

2.Variable setting
Timely switch, speed settings, bypass/timer/filter alarm/temperature setting.

3.Optional language
Different language English/French/Italian/Spanish and so on to meet your requirement.

4.Group control
One APP can control multiple units.



Type Main Function

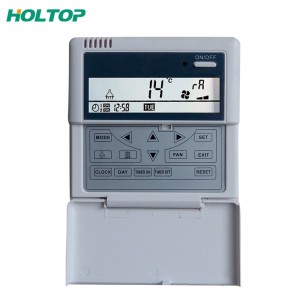

HDK-10 intelligent controllererv controller (2) 1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds)
2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display
3) weekly timer function
4) Auto bypass and auto defrost function
5) Integrated RS485 connector for BMS control(on PCB)
6) External on/off control and fire alarm control, inter lock function (on PCB)
7) Faulty signal output for monitoring function (on PCB)
8) Night free cooling function (on PCB)
9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity
10)Optional electrical heater for supply air or outdoor air (alternative for comfort ventilation or extreme winter low temperature defrost)
11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller)
12) WIFI function

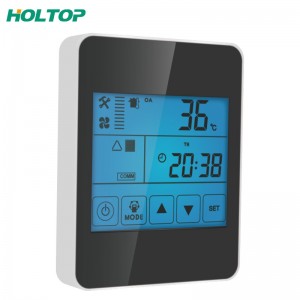

Touch screen intelligent controllererv controller (1) 1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds)
2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display
3) weekly timer function
4) Auto bypass and auto defrost function
5) Integrated RS485 connector for BMS control(on PCB)
6) External on/off control and fire alarm control, inter lock function (on PCB)
7) Faulty signal output for monitoring function (on PCB)
8) Night free cooling function (on PCB)
9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity
10)Optional electrical heater for supply air or outdoor air (alternative for comfort ventilation or extreme winter low temperature defrost)
11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller)
12) WIFI function

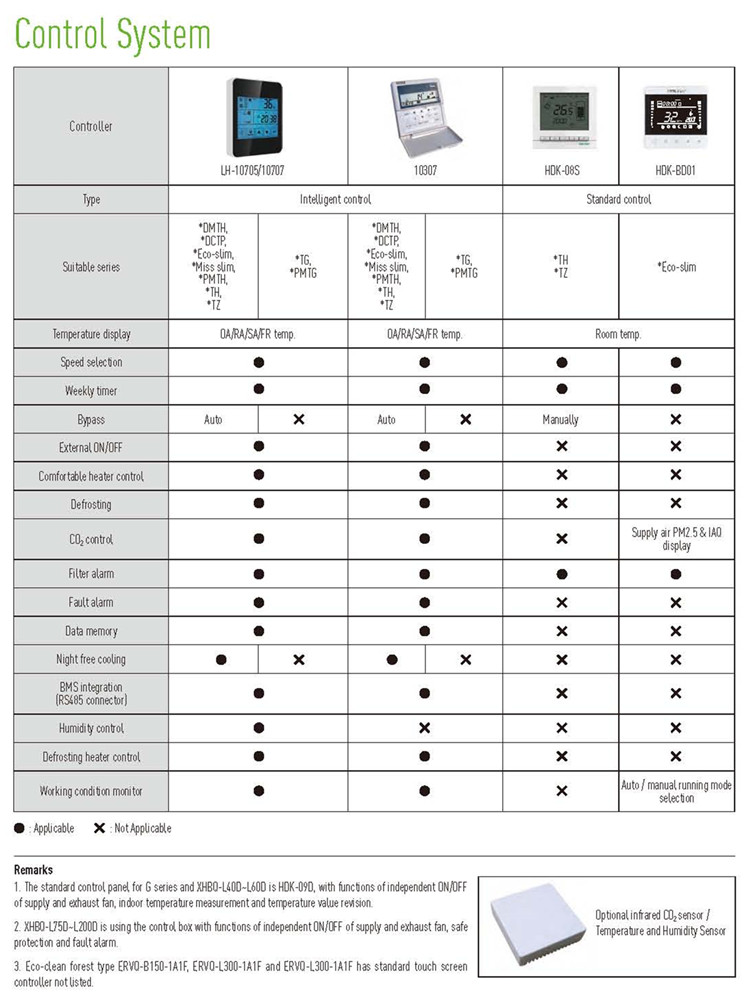

controller ERV
