60HZ (7.5~30 Ton) Inverter type Rooftop Packaged Air Conditioner

Short Description:

Rooftop package units are installed on rooftops of buildings and are connected directly to the building’s network of ducts. It is a self-contained system that integrates cooling, heating, ventilation, and fresh air, with indoor and outdoor components in a single unit to save space and improve energy efficiency.

Send email to us Download as PDF

Product Detail

Reliable Operation

● Robust Structure Design

● Anti-corrosion Solution (Optional)

● Wide Operation Range

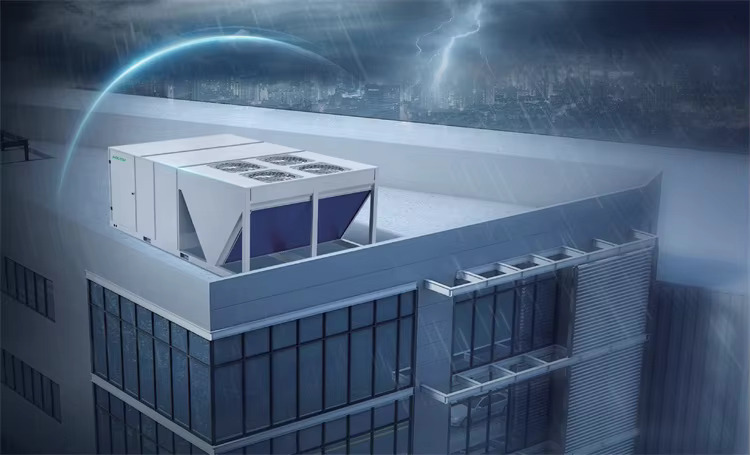

Robust Structure Design

The unit adopts a strong structural design with high- strength galvanized steel panels and an optional aluminum alloy frame. This ensures excellent resistance to deformation and damage from external forces, providing reliable stability even under extreme weather conditions such as strong winds and heavy snow.

Anti-corrosion Solution (Optional)

Tailored for challenging environments like coastal regions and sulphide contamination areas, our corrosion resistant solutions can be customized to effectively withstand high humidity and salt mist, ensuring long-term reliability.

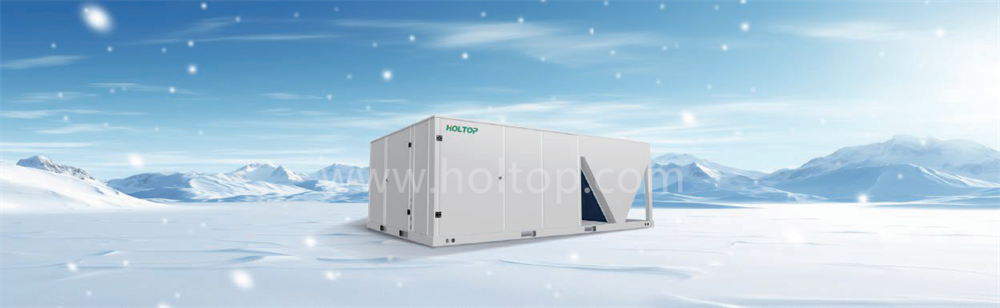

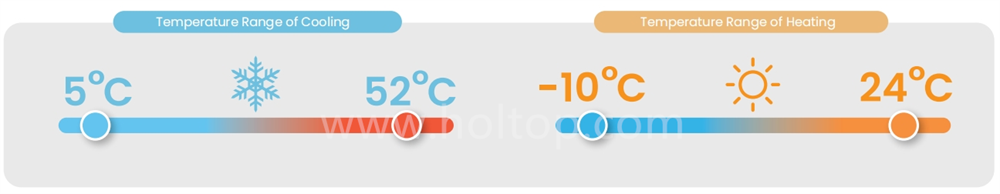

Wide Operation Range

The unit can operate effectively in a wide temperature range, from 5°C to 52°C in cooling mode and -10°C to 24°C
in heating mode, meeting diverse climate demands.

High Efficiency

● High EER and COP

● Efficient Heating & Cooling in One Unit

● High-efficiency Heat Exchanger

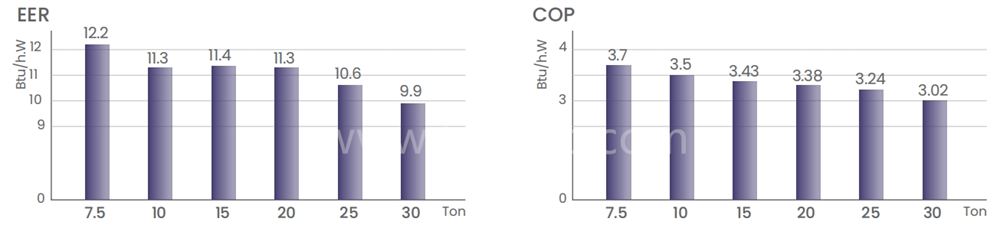

High EER and COP

Powered by advanced inverter technology, Holtop rooftop units deliver outstanding energy performance,
achieving EER values up to 12.2 and COP up to 3.7.

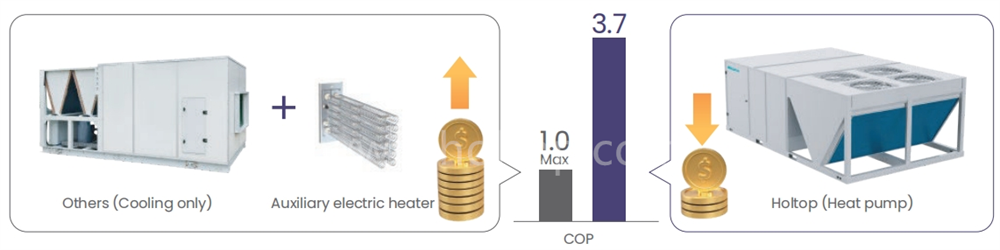

Efficient Heating & Cooling in One Unit

Holtop inverter rooftop units provide both cooling and heating with high efficiency, thanks to the integrated heat pump system. This eliminates the need for additional electric heating equipment, reducing upfront investment while maximizing year-round energy savings.

High-efficiency Heat Exchanger

The low-pressure-loss louvered fins, coated with hydrophilic aluminum foil, are perfectly combined with internally
threaded tubes, greatly increasing the surface area and heat transfer efficiency of heat exchanger

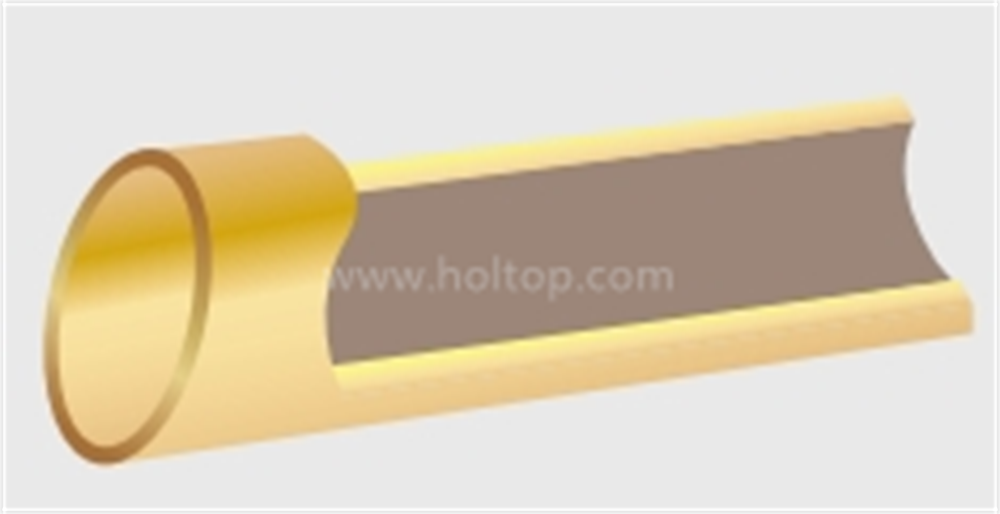

Ordinary tube

The smooth internal surface results in minimal disturbance to the boundary layer, lowering heat exchange efficiency.

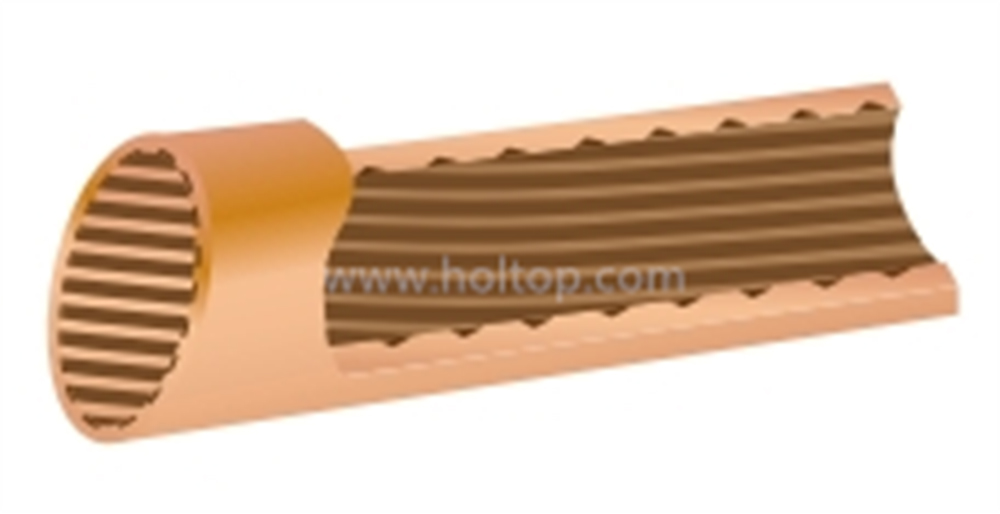

Internal threaded copper tube

Increase the internal surface area to improve the disturbance to heat transfer boundary layer, enhancing the performance of the heat exchanger.

Easy Installation & Maintenance

● Space-saving & Streamlined Installations

● Adjustable Duct Connection

● Convenient Maintenance

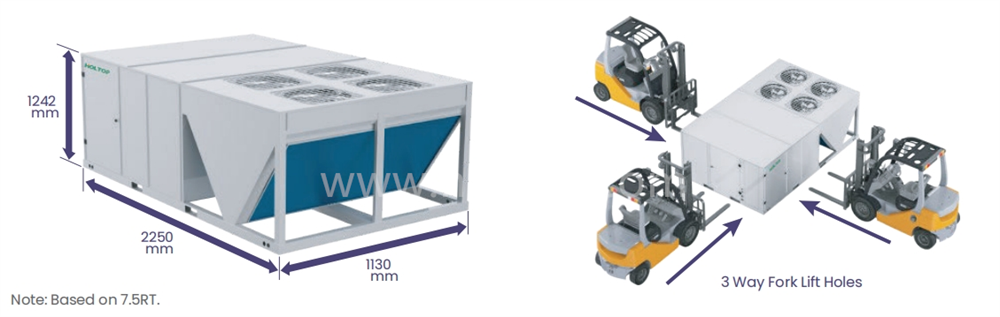

Space-saving & Streamlined Installations

Holtop rooftop units feature a compact, all-in-one design that integrates all components into a single unit— saving valuable indoor and outdoor space. With no need for additional equipment like cooling towers or water pumps, installation is faster, simpler, and more cost-effective.

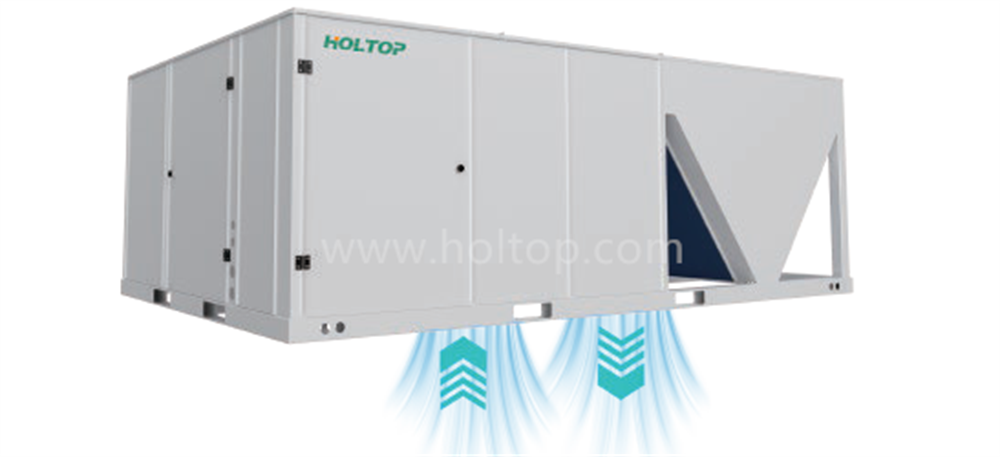

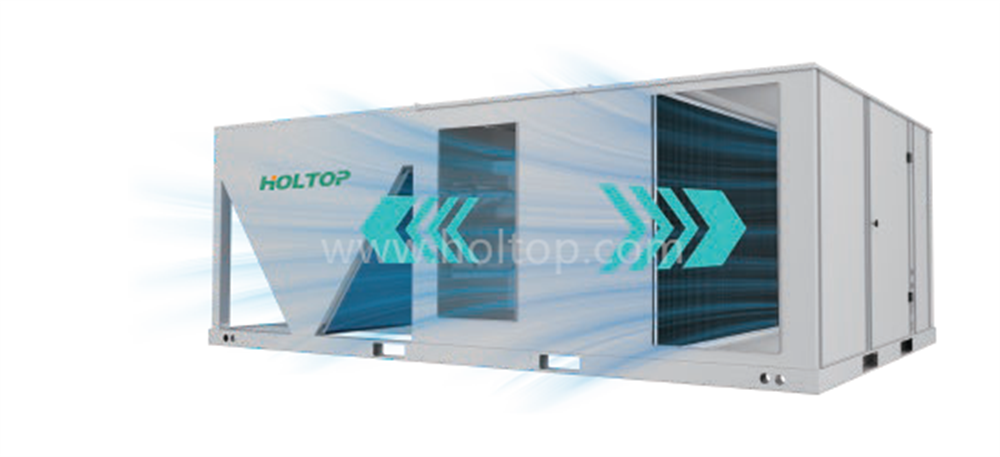

Adjustable Duct Connection

The unit offers both horizontal and bottom air supply options to suit various installation environments.

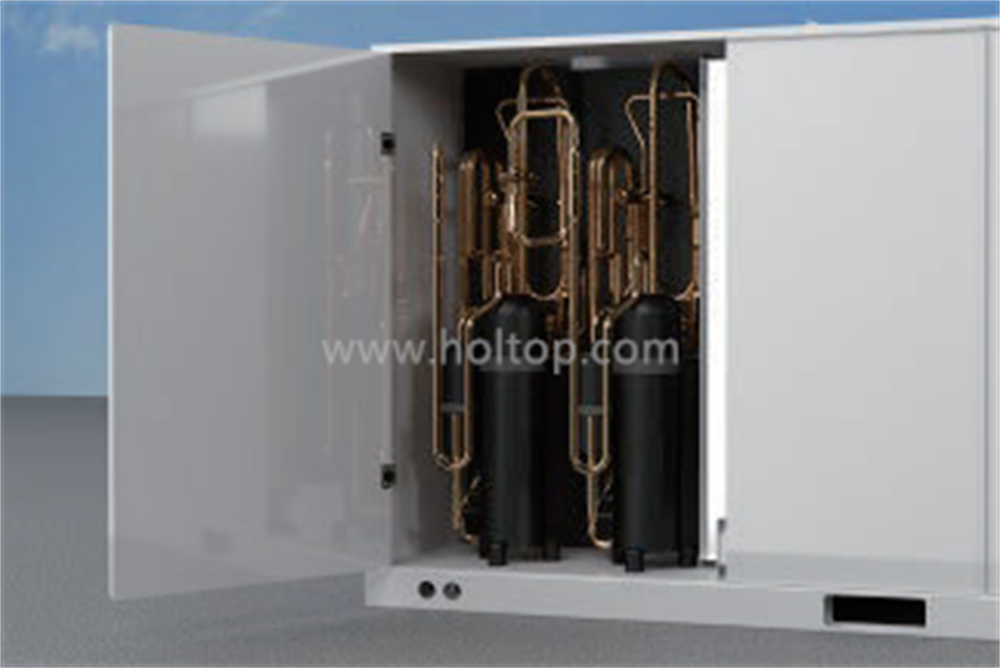

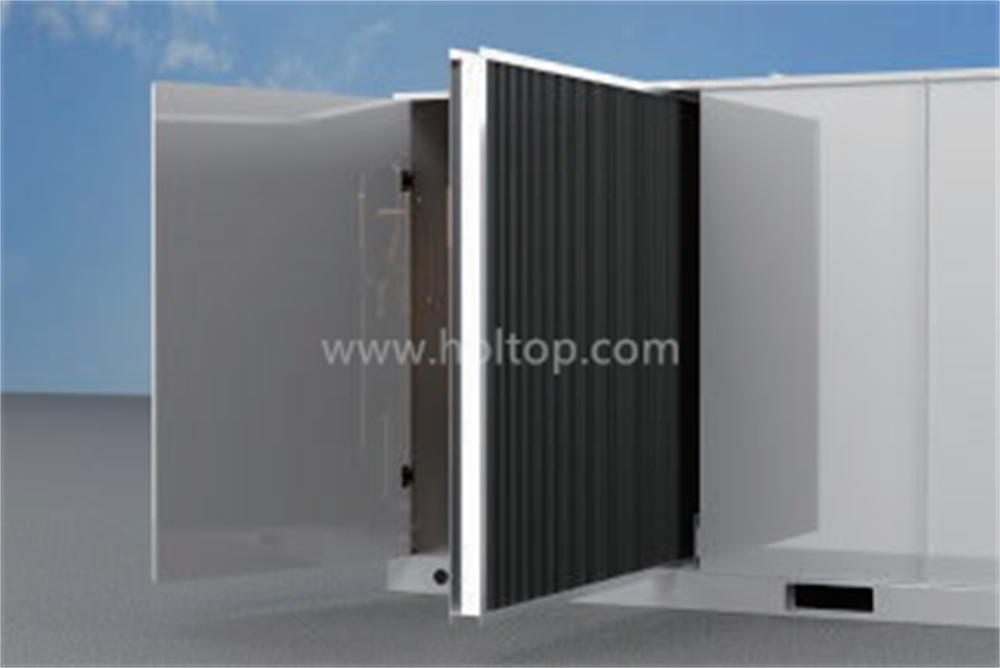

Convenient Maintenance

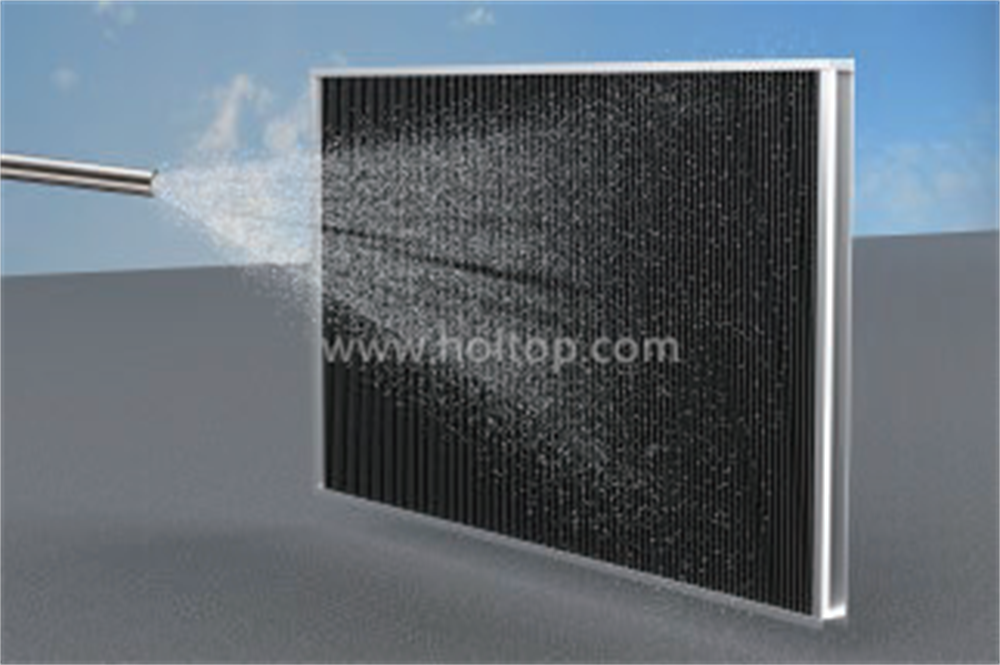

The access panel facilitate regular inspection and maintenance. The washable filters help maintain the efficient operation and air quality of the unit while saving maintenance costs.

Smart Control

● Individual Control

● Centralized Control

● BMS Gateway Control

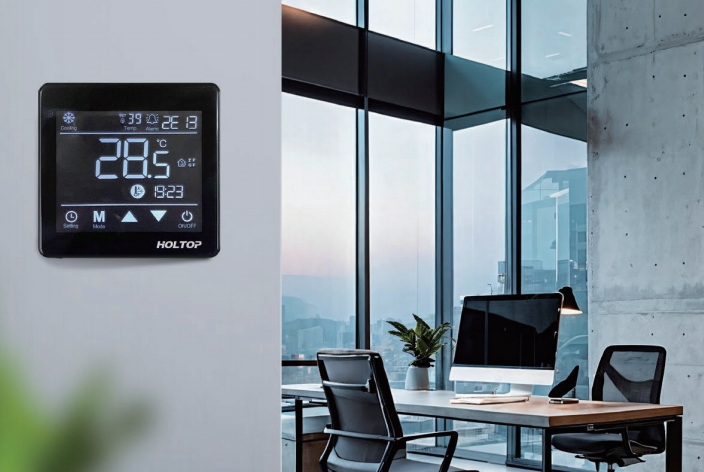

Individual Control

The Holtop individual controller features an intuitive interface equipped with touch buttons, offering an user-friendly experience for easy control.

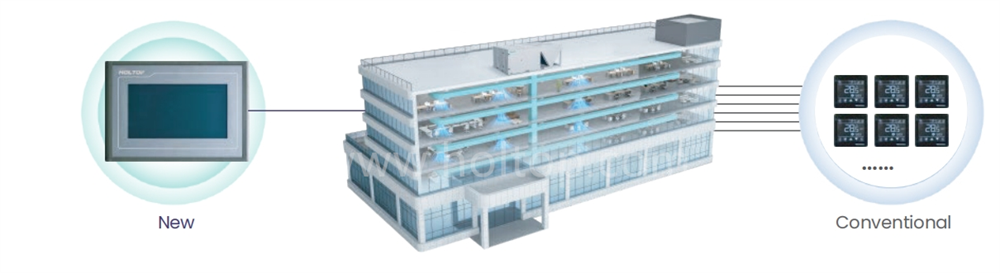

Centralized Control

Centralized Control is to control multiple units simultaneously, making it ideal for unified control in large-scale applications.

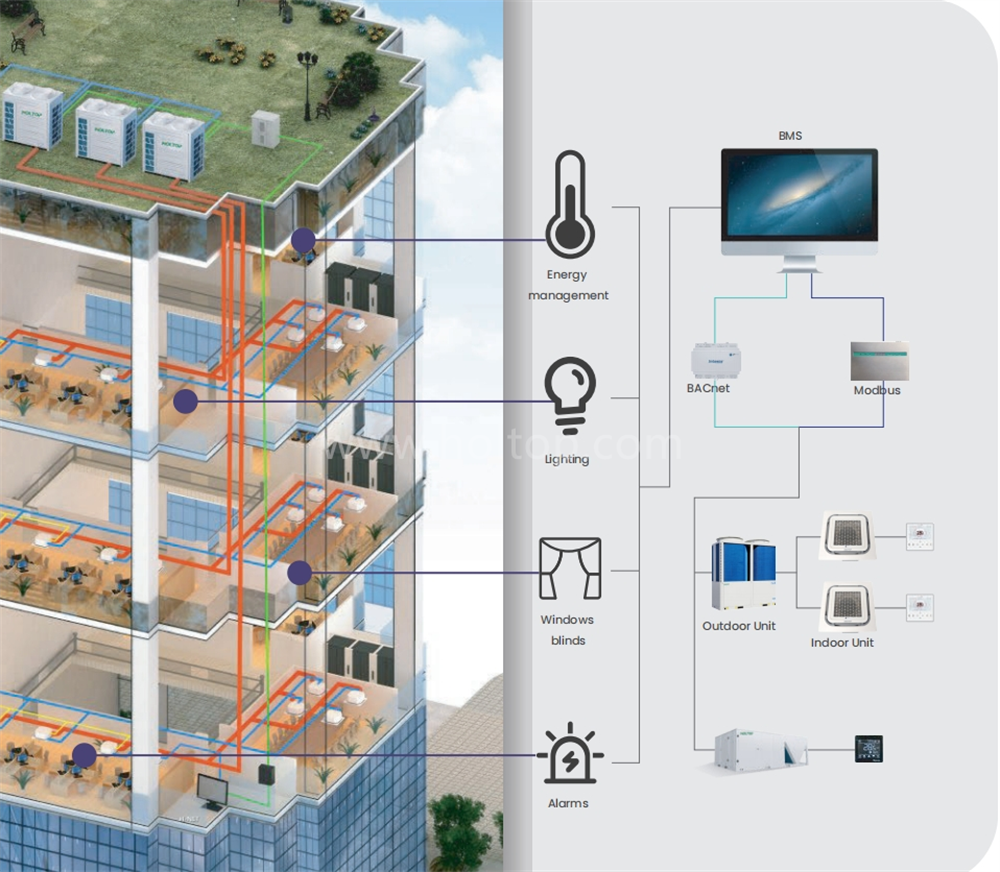

BMS Gateway Control

Holtop rooftop units can be seamlessly integrated with BMS gateways supporting protocols like Modbus and BACnet, enabling centralized monitoring and intelligent control of HVAC operations.
