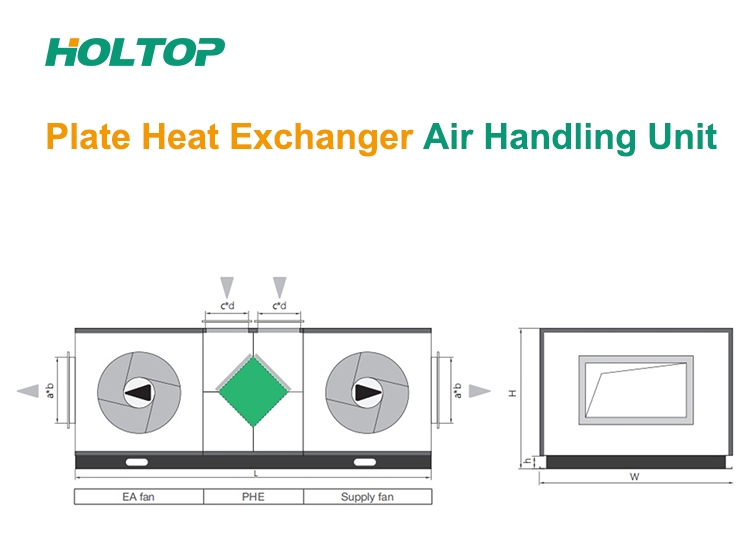

Plate Heat Exchanger Air To Air Heat Recovery Air Handling Unit

Short Description:

● Ceiling, horizontal, and vertical types
● Air volume: 1,000–60,000 m³/h
● Modular design with optional filters, humidifiers, heaters
● Fast selection, delivery, and installation
● Ideal for commercial and industrial HVAC systems

Product Detail

Plate Heat Exchanger Air handling Unit-AHU

Working principle

Separated by metal plates and sealed, two independent air channels are formed. When there is a temperature difference between the air (fresh air and exhaust air) flowing through two adjacent independent airflow channels, energy will be exchanged.

Application

Plate heat exchanger is suitable for sensible heat recovery, low dust content, non-corrosive comfort or industry air conditioning ventilation system.

Holtop HJK series Combined Air Handling Unit integrates the heat recovery core technology, and uses advanced technology to create the case structure that fully meets European standard performance. Rich function combination and all-round humanized design bring extraordinary experience to users.

HOLTOP Air to air heat recovery air handling unit (1)

Air handling Unit-AHU

● Delicate Section Design of AHU Case

● Superior Mechanical Strength

● Excellent Sealing

Delicate Section Design of AHU Case

Holtop offers 61 standard AHU case sections to meet various air volume needs, with customized designs to ensure performance and compact size—saving cost and space. The design also adapts to varying supply and exhaust air ratios for different applications.

Superior Mechanical Strength

The 1.5mm T6 aluminum frame with nylon connectors ensures stability even for large units. HJK series units meet EN1886 D1 grade, with maximum deflection <4mm/m, as verified by a certified lab.

Excellent Sealing

The embedded panel-frame structure allows easy maintenance while ensuring low air leakage. Polymer seals and carefully sealed doors and pipe passages guarantee excellent airtightness, meeting national air purification standards.

HOLTOP Air to air heat recovery air handling unit (2)

HOLTOP Air to air heat recovery air handling unit (3)

HOLTOP Air to air heat recovery air handling unit (4)

Air Handling Unit Design

FAN SECTION

● FILTER SECTION

● COOLING & HEATING COIL + HUMIDIFIER SECTION

● FAN SECTION

● ROTARY HEAT RECOVERY SECTION

FILTER SECTION

Primary Filter	Medium Filter	HEPA Filter	Electrostatic Filter	Activated Carbon Filter
G2-G4	F5-F9	H13-H14	The filter generates plasma under high pressure	Strong adsorption capacity

According to the requirements of air volume and static pressure value, one or more fans can be selected. The optional fans include direct-driven centrifugal fans, forward/backward centrifugal fans, plug fans, EC fans, etc. The fan impeller and belt pulley are corrected by static and dynamic balance, and the whole fan is corrected by running vibration, so that the operation is stable and reliable. The base of the fan and the motor is equipped with shock absorbers, the air outlet is designed according to the aerodynamic performance and has a soft connection with the case to effectively reduce the transmission of vibration.

Direct-driven centrifugal fan

Belt driven DIDW forward / backward centrifugal

Plug fan

EC fan

COOLING & HEATING COIL + HUMIDIFIER SECTION

The cooling coil and heating coils of HJK series units adopt the structure of copper pipes and aluminum fins, through a special expanding technology for complete jointing, which greatly improves the heat exchange efficiency of the coils.
