Ductless ERV Energy Recovery Ventilator
INGLE ROOM HEAT RECOVERY VENTILATOR
EFFICIENT, RELIABLE AND ENERGY SAVING VENTILATORS
Structure of Single Room Heat Recovery Ventilation Unit

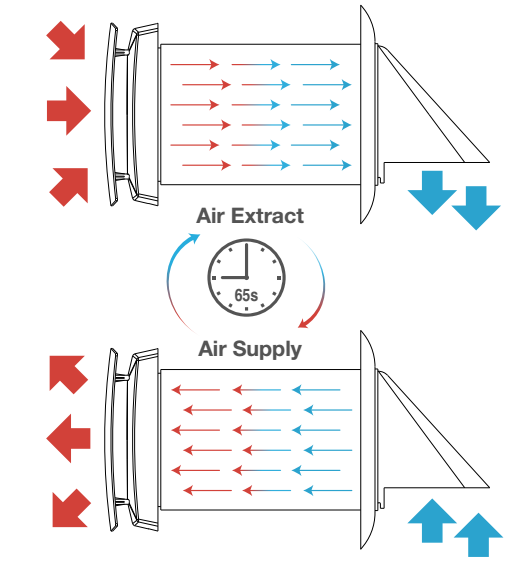

Operation Modes
Ventilation Mode: The ventilator runs in the air extract or air supply mode with a set speed. In case of synchronous operation of two connected ventilators one unit operates in the supply mode and the other one in the extract mode.Regeneration Mode: The ventilator runs in two cycles,65 seconds each, to provide heat and moisture regeneration. |

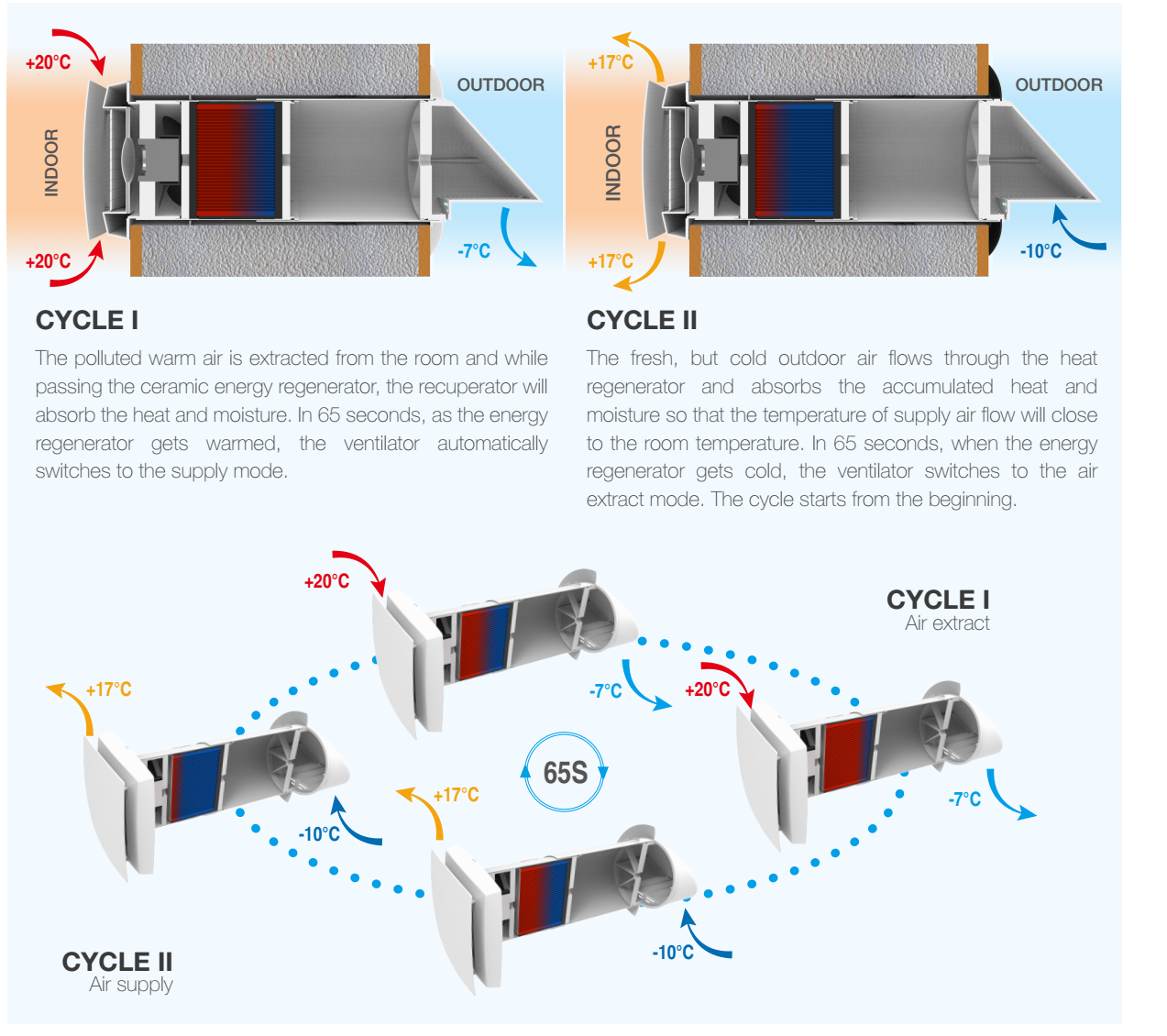

Working Principle
The reversible operation of the ventilator enables energy regeneration and consists of two cycles:
CYCLE I
The polluted warm air is extracted from the room and while passing the ceramic energy regenerator, the recuperator will absorb the heat and moisture. In 65 seconds, as the energy regenerator gets warmed, the ventilator automatically switches to the supply mode.
CYCLE II
The fresh, but cold outdoor air flows through the heat regenerator and absorbs the accumulated heat and moisture so that the temperature of supply air flow will close to the room temperature. In 65 seconds, when the energy regenerator gets cold, the ventilator switches to the air extract mode. The cycle starts from the beginning.
Applications
The ventilator is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other residential and public premises. The ventilator is equipped with a ceramic heat exchanger that enables supply of fresh filtered air heated by means of extract air heat regeneration. The ventilator is designed for through-the-wall mounting and is rated for non-stop operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
