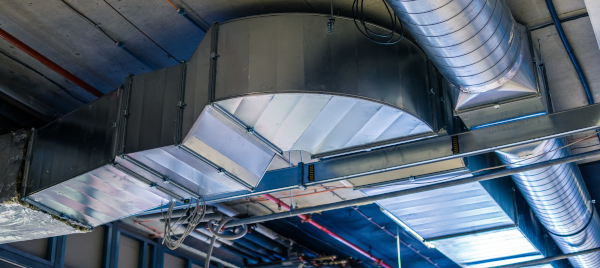

Static Pressure in AHU Systems

In a central HVAC system, the air handling unit (AHU) is essentially the “lungs” of the entire setup. And inside this “lung,” static pressure is a critical but often overlooked parameter — it determines whether air can be delivered smoothly to every room, whether the system runs quietly, how much energy it consumes, and how long the equipment will last.

If static pressure is not properly controlled — whether too high or too low — the system can become noisy, uneven in temperature distribution, energy-hungry, and even prone to premature failure.

1. What Is Static Pressure in an AHU System?

In the AHU and ductwork system, as air flows through the ducts, it exerts a pressure perpendicular to the duct walls. This is what we call static pressure.

Put more simply:

Static pressure = the “resistance” the fan must overcome to push air through filters, coils, ductwork, and diffusers.

Static pressure mainly represents the resistance of:

• ● Filtration stages (pre-filters, medium filters, HEPA filters, etc.)

• ● Cooling and heating coils

• ● Sound attenuators, plenums, and static pressure boxes

• ● Elbows, tees, transitions, and dampers

• ● Supply and return ducts

• ● Supply outlets and diffusers

In design documents, you’ll often see “external static pressure (ESP)”, which is the portion of static pressure the AHU fan can provide to overcome the resistance of the downstream ductwork and terminal devices.

2. Static Pressure, Dynamic Pressure, and Total Pressure

To understand static pressure, we need to talk about two related concepts: dynamic pressure and total pressure.

1. a. Static Pressure (Ps)

   • ● The pressure acting on the duct walls, independent of airflow direction

   • ● Represents the “potential energy” of the air in the system

   • ● Used to overcome friction losses and local resistance

2. 2. Dynamic Pressure (Pd)

   • ● Related to airflow velocity, representing the kinetic energy of the air

   • ● The higher the velocity, the higher the dynamic pressure

   • ● In fluid mechanics, it is often expressed as:

     $Pd=12\rho V2P\_d\; =\; \backslash frac\{1\}\{2\}\; \backslash rho\; V^2$

     Pd​=21​ρV2

     where ρ is air density and V is air velocity.

3. 3. Total Pressure (Pt)

   • ● The sum of static pressure and dynamic pressure at a given cross-section:

     $Pt=Ps+PdP\_t\; =\; P\_s\; +\; P\_d$

     Pt​=Ps​+Pd​

Inside ductwork, static and dynamic pressure continuously convert into each other:

• ● When the duct shrinks in size, air velocity increases, dynamic pressure rises, and static pressure tends to drop.

• ● When the duct expands or air enters a plenum or static pressure box, velocity decreases, dynamic pressure is reduced, and part of it is converted back into static pressure, which helps stabilize and equalize pressure.

The AHU fan “injects energy” into the airstream, increasing total pressure. As air passes through filters, coils, and ductwork, that total pressure is gradually consumed as static pressure losses.

3. What Does Static Pressure Actually Do Inside an AHU?

A typical AHU includes:

• ● Supply fan and possibly return/exhaust fans

• ● Multiple filtration stages

• ● Cooling and heating coils

• ● Mixing section (outdoor air + return air)

• ● Humidification/dehumidification section

• ● Silencers, plenums, static pressure boxes

• ● Various control dampers

As air moves from intake to discharge, static pressure changes repeatedly:

• ● Across filters: Filters are a major resistance source; the dirtier they get, the higher the pressure drop and the greater the loss in static pressure.

• ● Across coils: Air must pass through fins and tube bundles, creating noticeable pressure loss.

• ● Through elbows, tees, transitions: Local turbulence and friction constantly “eat away” static pressure.

• ● In plenums/static pressure boxes: Velocity drops, dynamic pressure is converted to static pressure, which helps stabilize the system and improve flow distribution across branches.

The core of fan selection is:

After air passes through all filters, coils, ductwork, and terminals, there must still be enough static pressure at the outlets to deliver the design airflow to each room.

4. How Does Static Pressure Affect System Performance?

4.1 Airflow and Temperature Uniformity

• ● Excessive static pressure (too much resistance)

  • ● Total airflow drops significantly below design values

  • ● Terminal rooms receive insufficient air, especially at the ends of long duct runs

  • ● Spaces may be “not cool enough in summer, not warm enough in winter”

  • ●A HU run time increases and energy consumption rises

• Static pressure too low (oversized ducts, heavy leakage, etc.)

  • ● Outlet throw is weak, and airflow cannot reach the occupied zone as designed

  • ● Air distribution becomes poor, causing stratification and uneven temperatures

4.2 Indoor Air Quality and Humidity Control

Proper airflow is essential for both filtration and moisture control:

• ●If airflow is too low → filtration effectiveness is reduced, and spaces may remain humid or dry for long periods

• ● If certain rooms have insufficient airflow → they may never fully benefit from system-level dehumidification or humidification, even though the AHU appears to be working normally

4.3 Noise and Equipment Life

• High static pressure → fans and motors operate under increased load, noise levels rise, and failure rates increase

• Fans forced to operate against high static pressure → higher motor temperature, accelerated wear of bearings and belts

• In heating mode, if heat cannot be carried away fast enough, coils or heat exchangers may overheat and suffer damage

5. Common Root Causes of Static Pressure Problems in AHU Systems

Static pressure issues essentially mean a mismatch between fan capability and system resistance. Common root causes include:

1. 1. Clogged or improperly selected filters

   • ● Filters not replaced on time cause a sharp increase in pressure drop

   • ● High-efficiency or HEPA filters installed without increasing filter area or fan capability create chronic high static pressure

2. 2. Incorrect duct sizing

   • ● Supply/return ducts too small → high velocity, high friction, high static pressure

   • ● Ducts too large → low velocity, low static pressure, and poor control of airflow patterns at terminals

3. 3. Poor duct layout and AHU integration

   • ● Too many elbows, tees, and abrupt transitions, with unnecessarily long duct runs

   • ● Lack of proper static pressure boxes and straight sections, causing unbalanced branch airflows

4. 4. Changes in building usage without system rebalancing

   • ● New rooms, partitions, or extended zones added by simply “tapping into” existing ducts without recalculating airflow and resistance

   • ● AHU originally designed for one load profile but later subjected to much higher or redistributed loads, causing imbalance

5. 5. Mismatch between equipment selection and duct system

   • ● Oversized fan: forcing more air into a duct system sized for less airflow → high static pressure and noise

   • ● Undersized fan: cannot generate enough total pressure to move air through the system → low static pressure and insufficient airflo

6. How to Diagnose and Fix Static Pressure Issues

6.1 Measurement and System Evaluation

Professionals typically:

• ● Measure static pressure at key points: AHU inlet/outlet, across filters, across coils, and along main trunks

• ● Compare measured values with design data and fan performance curves

• ● Evaluate the actual pressure drop of filters, coils, and fittings to see if they exceed design expectations

For new or heavily modified systems, it is also important to:

• ● Perform detailed load calculations to confirm required airflow in each zone

• ● Carry out duct calculations (similar to Manual D for residential systems) using duct calculators to verify velocities and friction losses

6.2 Typical Corrective Actions

Based on test results, corrective measures may include:

• ● Filter-side improvements

  • ● Replace severely clogged filters in time

  • ● Increase filter face area or depth to reduce face velocity and pressure drop

• ● Duct system optimization

  • ● Enlarge key supply/return trunks and heavily loaded branches

  • ● Reduce unnecessary elbows and abrupt transitions, and use smoother fittings

  • ● Add plenums or static pressure boxes to improve flow distribution among branches

• ● Fan and control adjustments

  • ● Use variable frequency drives (VFDs) to adjust fan speed so the operating point falls within a reasonable static pressure and airflow range

  • ● Balance the system via dampers at branches and terminals to eliminate extreme high or low static pressure zones

• ● Equipment matching

  • ● When the AHU and duct system are fundamentally mismatched, it may be necessary to replace the fan or reconfigure the unit and redesign portions of the ductwork

  •

7. Preventing Static Pressure Problems: From Design to Operation

To keep static pressure from becoming a chronic problem, you can act at three stages:

7.1 Design Stage

• ● Perform thorough load calculations and zoning

• ● Choose duct sizes based on target airflow, allowable velocities, and acceptable friction losses

• ● When determining fan external static pressure, include the resistance of filters, coils, silencers, dampers, and terminal devices — not just straight duct

7.2 Commissioning and Acceptance

• ● After installation, measure static pressure and airflow rather than relying only on drawings

• ● Adjust fan speed and dampers so that the operating point approaches the design conditions

• ● Record baseline static pressure at key locations and initial filter pressure drops for future maintenance reference

7.3 Operation and Maintenance

• ● Set filter replacement intervals based on actual dust load, not only nominal schedules

• ● Regularly inspect ductwork for leakage, blockage, and insulation condition

• ● When you notice abnormal noise, hot/cold complaints, or unusual energy consumption, always consider:

  “Could this be a static pressure problem?”
  and investigate accordingly.

8. Conclusion: Understand Static Pressure, Understand Half Your AHU

In an AHU-based HVAC system, static pressure is a highly integrated indicator:

• ● It reflects whether the fan and ductwork are properly matched

• ● It determines whether airflow and room comfort meet design expectations

• ● It indirectly reflects indoor air quality and humidity control effectiveness

• ● It is closely tied to system noise and equipment life

Once you understand how static, dynamic, and total pressure interact — and manage static pressure properly at the design, commissioning, and operation stages — you can keep your AHU system running efficiently, quietly, stably, and with reduced energy consumption over its entire service life.
